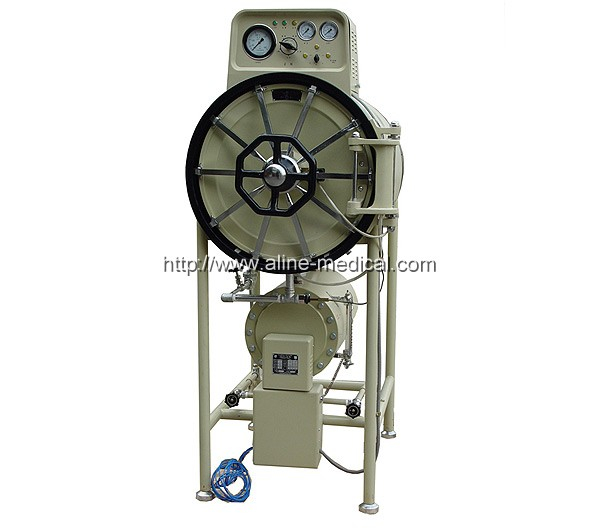

1.The main body is constructed by double layer jacket of which the internal layer is made of high-quality stainless steel. The sterilizer is supplied with main steam or steam independently heated by boiler. 2.The control panel is installed by a variety of components, such as steam control valve, pressure gauge, thermometer, as well as safety valve, interlocked door to ensure safe operation and reliable running. 3.The sterilizer is suitable for hospital, chemical industry and scientific research institutions to used. 4.The sterilizer is applied to instruments, dressings, so on to sterilize. Technical Data 21.600 22.600 Working pressure 0.15MPa 0.15Mpa Working temperature 126℃ 126℃ Heat equilibrium ≤2℃ ≤2℃ Chamber capacity 0.25(0.6M×1M) 0.25(0.6M×1M) O.D. (L×W×H):1.36m×0.765m×1.82m 1.36m×0.765m×1.82m Net weight 450kg 400kg Steam supply 12kW/(3 phase 380V~50Hz) Dg15mm (0.4~0.7Mpa) Power supply 100W/380V~50Hz 50W/(single phase)220V~50Hz The sterilizer is classified to Class I pressure container, Prohibit overheating or overpressure. Detailed specifications about the sterilizer can be referred to in the quality certifications.
