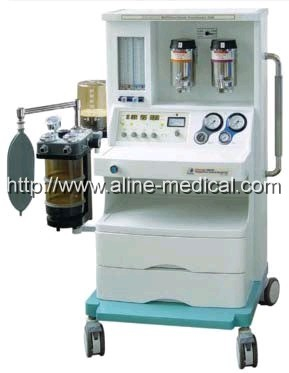

Multifunctional anesthesia unit Specification: Suitable for:Adult,Pediatrics Flow meter:O2,N2O O2 supply speed:35-75L/min Resiratory rate:8-40/min I/E ratio:1:0.5-1:3.0 Tidal volume:100-200ml(with additional pediatric bellows make tidal volume reach 50-1200ml) Ptr range:-1.0kPa-1.0kPa Maximum safe pressure:≤6kPa MV alarm:upper limit:1.8L/min,lower limit:0-10L/ min Airway pressure alarm:upper limit:1-6kPa,lower limit:0.5kPa Features: Anesthesia apparatus:Equipped with 2 vaporizers namely Enflurane and isoflurane,which can be used altematively,with temperature control,flow and pressure compensation:4-tube flow meter;O2-N2O interlock with high precision;integrated circuit system;power cutout protection device;rechargeable battery back up 2 hours after mains suply having been cut. Ventilator:Gas driven electrically controlled,time switch, volume constant and pressure restriction;monitoring tidal volume,ventilatory volume,gas-feeding pressure,airway pressure,respiratory frequency,etc. Safety device alarm upon power having been cut,N2O is cut off automatically if O2 is insufficient,alarm upon the excess of upper & lower airway pressure limit and ventilatory volume.It can be assembied with ECG monitor and Monitor for O2 concentration,and can select waporizers to assemble.
