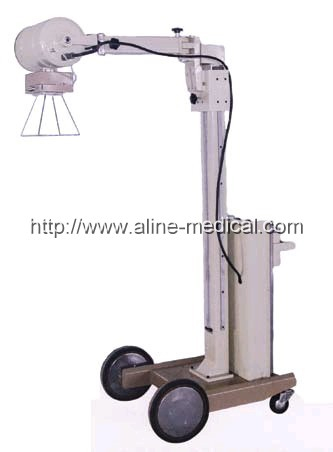

General: 1.Used in ward and emergency treatment room for radiography. 2.Combined X-ray generator. 3.Single focus,bridge rectification. 4.It is precise,safe,reliable and flexible. 5.Remote control device(control range≥5m) is used. Main Technical Parameter: X-ray generator:Stationary anode,single focus and bridge silicon rectification,The X-ray generator is an oil-immersed self-cooled unit. Max rated capacity:Current:50mA 30mA Voltage:90kVp 90kVp Time: 2s 6.3s Power supply:Voltage:180-240V Frequency:50Hz Power:not lower than 5kVA Resistance:not larger than 1Ω Voltage adjustment range of x-ray tube:45-90kVp,divided into 10 steps Range of the timer:0.08-6.3s Distance between the focus to the ground:600-1630mm X-ray tube:Longitudinal movement 240mm;Transverse rotation 60° Specification of X-ray tube:Model XD3-3.5/100 fixed anode,single focus 2.6mm Transport dimension(LxWxH)mm:1040x755x2050 Weight(kg):Net:127/Gross:205
