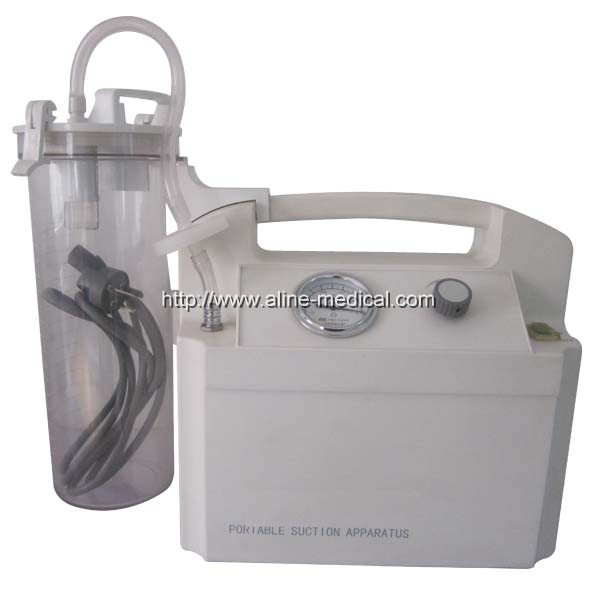

Portable Suction Apparatus offers high vacuum and high flow with double piston cylinders. It rapidly builds up a powerful vacuum within seconds. It provides flexible and combinable container system to satisfy various applications in clinic. FEATURES 1. Providing extremely efficient vacuum generation with maintenance- free and easy service. 2. The level of vacuum required is controlled by the vacuum regulator and showed on the vacuum meter. 3. The overflow protection device prevents liquid or solid particles from entering the intermediate tubing; the bacterial filter for single use can eliminate airborne contamination. 4. Five kinds of jar configuration make it flexible to select ,all jars available, made of polycarbonate (PC), are transparent , unbreakable and autoclavable. 5. A novel exterior, small size and light weight make it easy and comfortable to carry about. SPECIFICATIONS 1. Max.vacuum: 0.09 MPa (680 mmHg) 2. Adjustable vacuum range: 0.02 MPa-0.09 MPa 3. Flow rate: /32 L/min 4. Noise: ≤60 dB(A) 5. Jar: 2000 mL×1(standard configuration) 6. Power supply: ～220V610,%50Hz 7. Input power: 150 VA 8. G.W.: 7 kg 9. Dimension: 620mm× 264mm×420mm SELECTIVE JAR CONFIGURATION 1000 mL×1,1000 mL×2,2000 mL×1,2000 mL×2,2000 mL,1000 Ml
