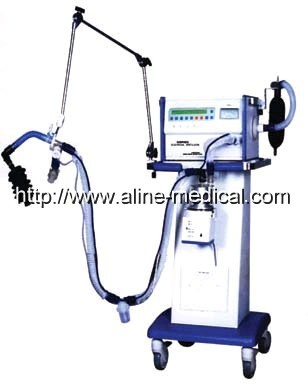

Electrical Ventilator

  • MI9

Additional Description

This is a result from the cooperation the application of reliability technical and icro-processor controlled between Shanghai Medical Equipmetn Factory and the Teching and Research Section on reliability of Shanghai No.2 Industrial University.Ventilator comes as a electronic-controlled electric-drivedn,time cycled,volume constant ventilator for the ventilation administration and care for the patient of respiratory failure in emergency site.During transportation of patient,in hospital or at home,with a well designed cylinder pump system the ventilator is able to without an air compressor,output a precise volume and save the time for maintenance. Oxygen concentration in the inhaled gas can be adjusted through a oxygen enrichment kit connected to the gas take-in socket,the ventilator can also be furnished with humidifier,oxygen analyzer, extend clinical application.With internal battery keeps machine work another 120 minutes. Main specifications: Ventilation modes:(IPPV/Assist)IPPV,(SIMV)(Standby), IPPV/Assist,SIMV,IPPV,Standby Ventilation frequency:8-40/min SIMV frequency:2-10/min Tidal volume:200-1500ml Inspiratory time:0.5-3s Trigger sensitivity:-1.0-1.0kPa High pressure alarm:1.5-6kPa Low pressure alarm:0.4-3.4kPa Power supply:AC 220V 50Hz and internal battery 12V Power consumpton :100W Dimensions:36.5x32x25.5cm Weight:18kg Main specifications: IPPV/Assist,IPPV,SIMV,PEEP,SIGH Airway pressure monitor High/low airway pressure alarm Apnea alarm Low battery alarm System fault alarm
