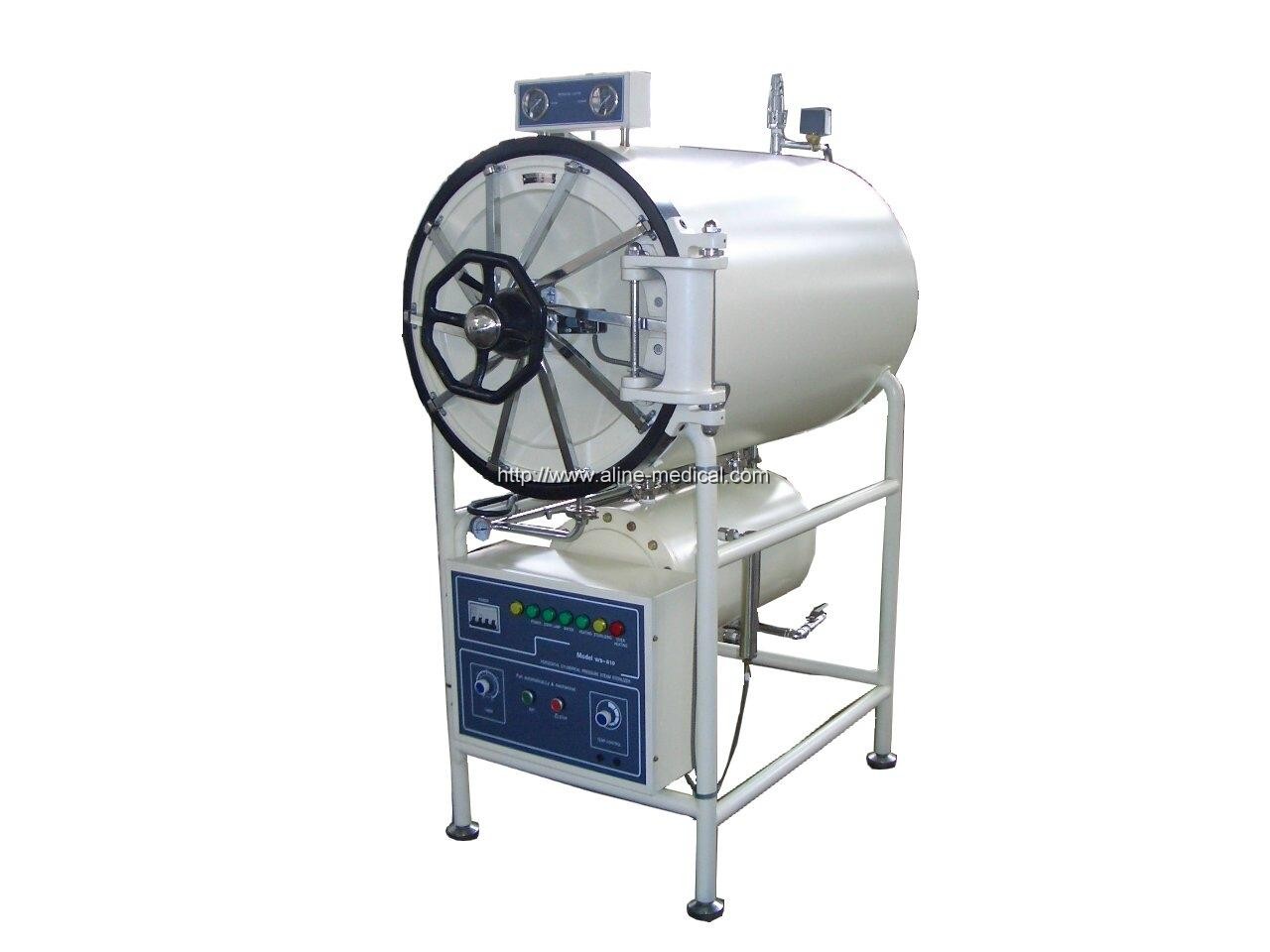

Horizontal CylindricalPressure Steam Sterilizer

  • MO39

Additional Description

Sterilizing course automatic sterilization controlled,easy to operate With drying function,suitable dressing drying With over-temperature,over-pressure auto-protect device The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the door doesn’t close well. The safety valve will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank The power will be cut-off automatically, cut-off the water and alam when the machine lacking water The chamber of the sterilizer is made of stainless steel Technical Data 150YDA 200YDA 280YDA 400YDA 500YDA Sterilizing chamber volume 150LΦ440*1000 200LΦ515*1000 280LΦ600*1000 400LΦ700*1000 500LΦ700*1300 Working pressure 0.22Mpa Working temperature 134℃ Heat average ≤±2℃ Time for sterilization 1-60min Adjustment of temperature 40℃~134℃ Time for drying 0-60min Poewr 9kw/380v 50Hz 9kw/380v 50Hz 12kw-380v 50Hz 18kw-380v 50Hz kw-380v 50Hz Dimension 1400*600*1300 1400*670*1650 1400*770*1780 1460*880*1830 1800*900*1820 Transport dimension 1550*750*1850 156*820*1850 1860*920*2100 1600*1050*2100 1850*1050*2100 G.W/N.W 320/240Kg 350/260Kg 530/420Kg 530/420Kg 580/470Kg
