Horizontal cylindrical pressure steam sterilizer
You are here: Home » Products » Clinical testing&operation room devices&assay instruments seris » Pressure Steam Sterilizer Series » Horizontal cylindrical pressure steam sterilizer


Share to:
sharethis sharing button

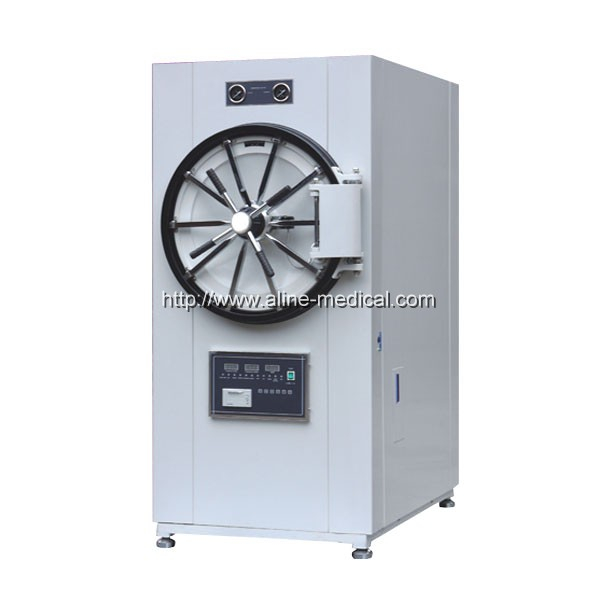

Horizontal cylindrical pressure steam sterilizer

  • MO41

Additional Description

Sterilizing course automatic sterilization controlled,easy to operate With drying function,suitable dressing drying With over-temperature,over-pressure auto-protect device The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the door doesn’t close well. The safety valve will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank The power will be cut-off automatically, cut-off the water and alam when the machine lacking water The chamber of the sterilizer is made of stainless steel With printer. Technical Data 150YDB 200YDB 280YDB Sterilizing chamber volume 150LΦ440*1000 200LΦ515*1000 280LΦ600*1000 Working pressure 0.22Mpa Working temperature 134℃ Heat average ≤±2℃ Time for sterilization 0-99min Adjustment of temperature 40℃~134℃ Time for drying 0-99min Power 9kw/380v 50Hz 9kw/380v 50Hz 12kw-380v 50Hz Dimension 1400*600*1300 1400*670*1650 1400*770*1780 Transport dimension 1550*750*1850 156*820*1850 1860*920*2100 G.W/N.W 430/340Kg 436/350Kg 470/462Kg
