MEDICAL DIAGNOSTIC X-RAY UNIT(100mA)

Quantity:

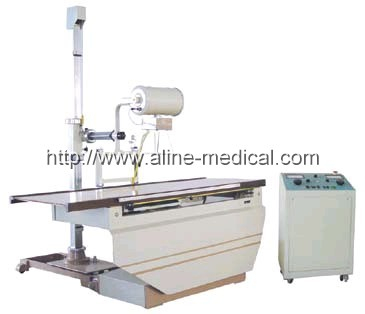

MEDICAL DIAGNOSTIC X-RAY UNIT(100mA)
  • MG12

Additional Description

MAIN TECHNICAL PARAMETER X-ray generator:Stationary anode, double focus, and bridge silicon rectification,The X-ray generator is an oil-immersed self-cooled unit. Max rated capability: Fluoroscopy 75kVp,3mA Radiography Current 15 mA 30 mA 60 mA 100 mA Voltage 90 kVp 90 kVp 90 kVp 80 kVp Time 6.3s 6.3s 4.0s 3.2s Power supply: Voltage:180-240V Frequency:50Hz Power:7kVA(not lower than 7kVA) Resistance:1Ω(not larger than 1Ω) Voltage adjustment range of x-ray tube:45-90kVp (continuous) Range of the timer:0.08-6.3 s Fluorescent screen size:356 mm×356 mm Distance between the focus to the screen:830 mm(max),630 mm (min) Tube head carriage movement range: (vertical): 1100 mm, (horizontal): 260 mm Specification of X-ray tube:XD4-2.9/100, 1.8mm×1.8mm/4.3mm×4.3mm, Stationary anode,double focus Collimator:Field coverage at 100 cm FFD,45×45 cm max,0×0 cm min Movement of the tabletop:400 mm Field size of spot film device: 127mm×178mm (one piece) 203mm×254mm (one piece) 1/2(127mm×178 mm) (two pieces) Transport dimension,Weight:234×100×123(cm),(NET)410kg/(GROSS)535kg
