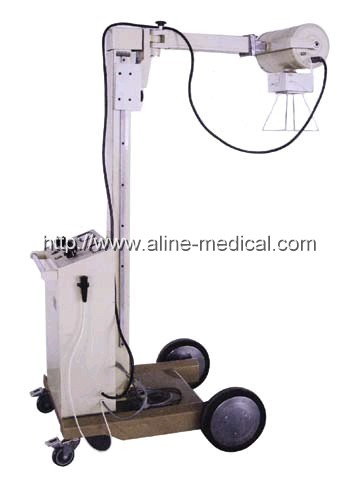

MOBILE X-RAY UNIT (100mA)

Quantity:
MOBILE X-RAY UNIT (100mA)
  • MG10

Additional Description

General: 1.Used in ward and emergency treatment room for radiography. 2.Combined X-ray generator. 3.Single focus,bridge rectification. 4.It is precise,safe,reliable and flexible. 5.Remote control device(control range≥5m) is used. Main Technical Parameter: X-ray generator:Stationary anode,single focus and bridge silicon rectification,The X-ray generator is an oil-immersed self-cooled unit. Max rated capacity: Current: 15mA 30mA 60mA 100mA Voltage: 90kvp 90kvp 90kvp 80kvp Time: 6.3s 6.3s 4.0s 3.2s Power supply:Voltage:180-240V,Frequency:50Hz,Powrer:not lower than 7kVA,Resistance:not larger than 1Ω Voltage adjustment range of x-ray tube:50-90kVp Range of the timer:0.08-6.3s Distance between the focus to the ground:700-1780mm X-ray tube focus transverse rotation:±60°, Specification of X-ray tube:Model XD4 2.9/100 fixed anode,single focus 1.8/4.3mm Transport dimension(LxWxH)mm:1230x900x2050 Weight(kg):Net:159/Gross:256
