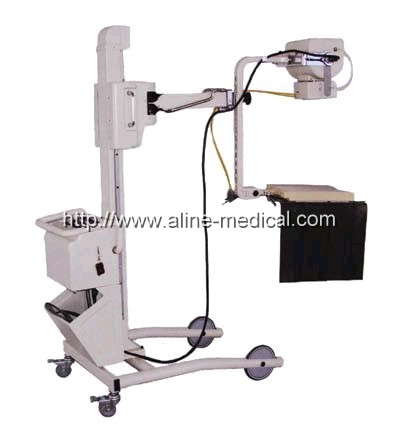

General: 1.Used in ward and emergency treatment room for fluoroscopy and radiography. 2.Combined X-ray generator. 3.Single focus,full wave rectification. 4.Single-chip microcomputer controls and convenient service. 5.Liquid crystal display and error can be automatic warned. 6.Remote control exposure device. Main Technical Parameter: Max rated capacity:85kVp,30mA Power supply:Voltage:180-240V(Single),Frequency:50 Hz,Current:Fluoroscopy 3A(Continuous),Radiography 16A(Instantaneous),Internal resistance of power supply wire:≤0.7Ω Max. Rated capacity:85kVp,320mAs Nominal Power:3kW Size of fluorescent screen:280mmx350mm X-ray tube Specification:;Model XD1-3/100 fixed anode,single focus 2.3mm Distance between focus to screen:620mm Mobile distance of carrier:850mm Transport dimension(LxWxH)(mm):1490x890x2080 Weight(kg):Net:144/Gross:227
