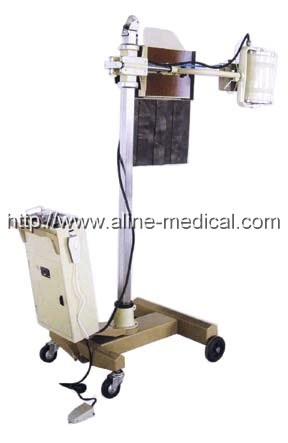

General: 1.Used in ward and emergency treatment room for fluoroscopy and radiography. 2.Combined X-ray generator. 3.Single focus,full ware rectification. 4.It is precise,safe,reliable and flexible. 5.Remote control device(control range≥5m) is used. Main Technical Parameter: X-ray generator:Stationary anode,single focus and bridge rectification,The X-ray generator is an oil-immersed self-cooled unit. Max rated capacity:85kVp,30mA Power supply:Voltage:180-240V,Frequency:50Hz,Power:not lower than 3kVA,Resistance:not larger than 0.7Ω Voltage adjustment range of x-ray tube:50-85kVp,divided into 8 steps Range of the timer:0.2-10s Fluorescent screen size:280mmx350mm Distance between the focus to the screen:700mm Tube head carriage movement range:vertical:1100mm,horizontal:1 60mm The rotation angle of tube head carriage:90°, The rotation angle of the controller and the accessory case:80° Specification of X-ray tube:Model XD1-3/100 fixed anode,single focus 2.3mm Transport dimension(LxWxH)mm:1650x880x600 Weight(kg):Net:98/Gross:164
