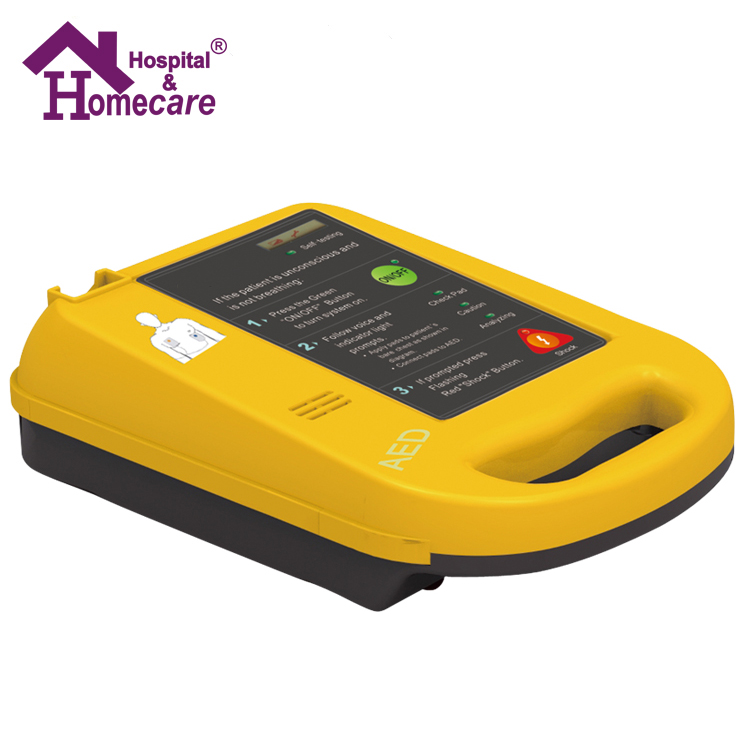

Medical Portable AED Automatic External Defibrillator With Self Test
AED is a portable model, which can be equipped at home, in public places, or in the hospitals. It’s easy and convenient
to use when give first-aid to patient. Meanwhile, it has the function of automatic analyzing patient’s ECG data, and then takes
corresponding defibrillation energy level according to patient’s current situation, which has greatly improved success rate, and
maximum reduced damage to patient’s heart.
Three-step defibrillation process
Two-button operation
Extensive voice and visual prompts for the operator
Biphasic energy output
Lock-out protection to prevent inadvertent defibrillation
Automatic Self-test:Daily battery condition test& Monthly AED whole inter system test
1. Physical
Category | Specification |
Dimensions | 303 x 216 x 89 mm |
Weight | 2.0 kg |
Operating Temperature | 0℃ to 40℃ |
Operating Humidity | Relative humidity between 30% and 95% (non-condensing) |
Storage Temperature (without battery) | -20℃ to 55℃ |
Storage Humidity (without battery) | Up to 93% (non-condensing) |
|
|
2 Electrical Isolation
Category | Specification |
Power | Unit operates on internal battery only |
External Electrical Connections | No external devices are attached to the unit |
Risk Current Category | Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard) |
|
|
3 Defibrillator
Output | Specification |
Energy Sequence (user configurable) | Biphasic Truncated exponential |
| 150, 150, 200J |
Charge Time from “Shock Advised | 10 sec. to 150J 15 sec. to 200 J |
Analysis Time | 9 sec. |
From start of analysis to shock ready: | from power up | Less than 20 seconds |
after 6 shocks | Less than 25 seconds |
Audible Prompts | 22 audible prompts |
Visual Prompts | LED prompts |
Controls | Two buttons - On/Off, Shock |
Output Energy Accuracy | ±15% into any impedance from 25 to 175Ω |
| 20Ω to 200Ω |
4 Battery
Category | Specification |
Part No | CR123A-4x2 |
Non-rechargeable | 12V d.c. 2.8Ah |
Capacity | 100 discharges at 200 Joules or 120 discharges at 150 Joules |
Shelf Life (25℃±15℃) | 5 years |
