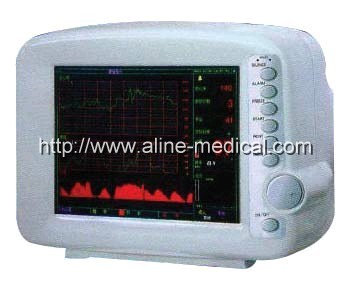

Mother/Fetus Monitor

  • MG108b

Additional Description

Mother/Fetus Monitor NIBP Method:Intellgent Oscillation Cuff inflating time:<30s(standard adult cuff 0-250mmHg) Deflating time:average <90sec Deflating time when measurement stop:<2sec(standard adult cuff 250-150mmHg) Initial inflating pressure:180mmHg(adult),120mmHg(infant) Maximum allowed inflating pressure:300mmHg(40Kpa,over this value,safety valve deflating automatically) Measurement Mode:manual measurement,adult mode Measurement Intermisssion:0-240min adjustable Measurement parameters:systolic pressure/diastolic pressure/ mean pressure Alarm indication range:upper limit 22-250mmHg,lower limit 20-248mmHg TEPM(optional) Measuring Range:28.0-43.2℃ Precision:±0.1℃(±0.20F°) Resolution:±0.1℃ Alarm indication range:28.0-43.2℃ Unit:Degree of Celsius of Fahrenheit Alarm indication range of FHR,UCP,HR,ECG,RESP, RATE,NIBF,SPO2,TEMP are settable. Sound and light alarm are available. Power supply:220V±22V,50Hz±1Hz Power consumption:≤110VA Display mode:10.4 inch TFT LCD display Alarm mode:Sound and Light Working condition:Ambient temperature:5℃-40℃ Relative humidity:≤80% Atmospheric pressure:86-106Kpa Storing condition:Ambient temperature:-10℃-40℃ Relative humidity:≤80% Keep away from acrid gas,Good draught Safcty:Class I,Type BF 110mm width Recorder is optional Mother/Fetus Monitor FM,FHR,TOCO,NIBP,PULSE RATE,ECG,TEMP,RESP,SPO2 FHR(Fetal Heart Rate) Method:Ultrasound Doppler Measuring Range:60-200bpm Precision:≤±2bpm Ultrasound Frequency:2.5 MHz Ultrasound Output:5mW/cm2 Ultrasound Task Measurement:Impulse Wave Alarm Indication range:upper limit:66-200bmp,lower limit:65-199bpm TOCO(Uterine Contraction Pressure) Method:Outside Measurement Measuring Range:0-100 unit Non linearity Precision:≤±10% Quickening Sign:Artificial and Automatic ECG(optional) HR measuring range:20-240bpm Precision:≤±2bpm Lead selection:standard 12 leads(all-lead ECG) Gain selection:x1/2,x1,x2,x Auto Alarm indication range:upper limit 22-240bpm,lower limit 20-238bpm SPO2(optional) Sensor:Two-wave LED(light emitting diode) SPO2 measuring range:0-100% Resolution:1% Precsion:±2%(90-100%),±4%(70-89%),±6%(40-69%) Alarm Indication range:upper limit 1-100%,lower limit:0-99% Range of pulse rate:20-250bpm Pulse alarm indication range:upper limit 22-250bpm,lower limit 20-248bpm RESP(optional) Measuring mode:chest impedance Measuring range:0-120bpm Alarm indication range:upper limit 1-120bpm,lower limit 0-119bpm
