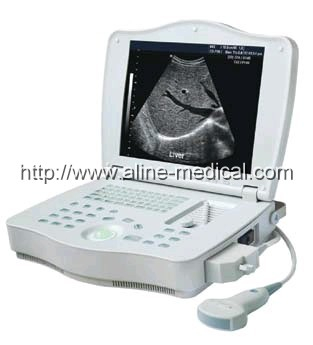

Portable Ultrasound System
You are here: Home » Products » Hospital equipment series » Ultrasound series » Portable Ultrasound System

loading

Share to:
sharethis sharing button

Portable Ultrasound System

Quantity:
  • MH6

Additional Description

Features Laptop design 15 inches high-resolution LCD 8 TGC controls High-quality images Broadband multi-frequency transducers Cineloop Two USB ports Two connectors Pseudo Colors Standard Configuration Main unit 15 inches high-resolution LCD 256-frame cineloop Two probe connectors Two USB ports 3.5MHz electronic convex transducer(2.5/5.0MHz) Optional Electronic transvaginal transducer (5.0/7.5MHz) Electronic high-frequency linear trandducer (6.5/8.5MHz) Trolley Video Printer Specifications Dispaly:15 inches high-resolution LCD Scanning Mode:Electronic convex array, Electronic linear array Display Mode:B, B/B, B/M and M Magnification:x0.8, x1.0, x1.2, x1.3, x1.5, x1.6, x1.8, x2.0 Gray Scale:256 Adjustment:A, B, C, D, E, F, G,H Resolution:Horizontal≤2mm, Vertical ≤1mm Geometrical Precision:≤5% Blind Area:≤3mm TGC:8-section TGC adjustment Pseudo Colors:Yes Display Depth:240mm and depth could be increased Image Polarity:Left/right, positive/negative and up/down Cineloop:Successive 256 frames Output Interface:Three output interfaces: 1 VGA and 2 PAL video signal output Power Supply Range:AC 110V60Hz, 220V50Hz
