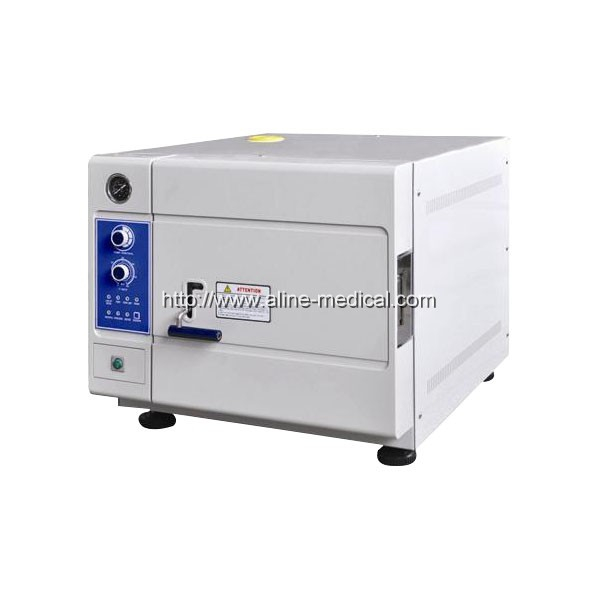

Indicator light indicates working state For 4-6 minutes rapidly sterilizing Sterilizing temperature ad time can be preset Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry Over temperature & over pressure auto-protection Safe protection of water lacking Exhaust the cool air automatically Door safety lock system With four stainless steel sterilizing plates The chamber of the sterilizer is made of stainless steel Automatically shut off with beep reminding after sterilization Technical Data 20J 24J 35J 50J Chamber volume(mm) 20LΦ250*420 24LΦ250*520 35LΦ300*500 50LΦ340*550 Working pressure 0.22Mpa Working temperature 134℃ Heat average ≤±1℃ Timer 0~60min Adjustment of temperature 105~134℃ Power 1.5Kw/AC 220V50Hz 2.7Kw/ac 220V50HZ Sterilizing plate 340*200*30 400*200*30 400*200*30 500*250*30 Overall dimension 480*480*384 580*480*384 730*550*510 770*600*540 Transport dimension 700*580*500 800*580*500 820*680*650 880*730*700 G.W/N.W 43/38Kg 50/44Kg 95/80Kg 112/93Kg
