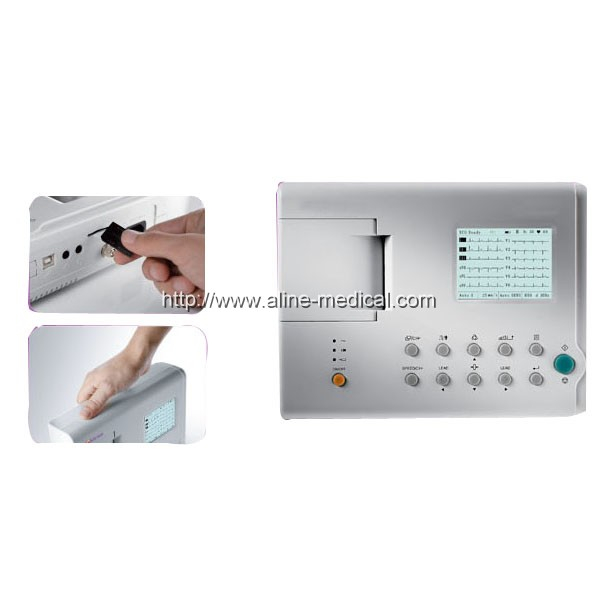

Three Channel Intepretive ECG Machine

  • MK13

Additional Description

Feature: Digital isolaton technology minimized signal interference Histogram and trend chart for R-R interval analysis Waveform and patient information replay Languages options:English,Russian and Chinese Preview waveform of the currently examining patient before printing Selectable of printing the analysis report and representative beats Inputting name & age of patient and name of hosital & doctor by operator The LCD brightness and contrast are adjustable USB port for real-time data transmit to PC Optional SD card supporting the maximum data capacity of 2 GB,up to 10000 copies of patient data storage Specifications Lead:Standard 12 leads,simultanous acquisition Input circuit:Floating,protecting against defibrillation and pacemaker effect Input impedance:>50MΩ Patient leakage current:<10μA Input circuit current:≤0.1μA Calibration voltage:1mV±3% Frequency responce:0.05-150Hz Time constant:≥3.2s CMRR:>60dB,>100dB(with AC interference filter) Filter:AC,EMG,DFT Sensitivity:5,10,20mm/mV Noise level:≤15μVp-p Power requirements: AC:100-240V,50/60Hz,50VA, DC:14.8V rechargeable Li-ion battery Safety level:IEC class I,type CF Display:320x240LCD with backlight Operation mode:Automatic or manual Analysis function:ECG parameters automeasure, auto-analysis Printer:high resolution thermal array printer Paper speed:12.5,25,50mm/s Recording paper: 63mmx30m or 63mmx20m,roll paper 63mmx75mmx20m, fan-fold paper Dimensior:268x206x67.5mm N.W:3.3kgs
