Twelve Channel Electrocardiograph
You are here: Home » Products » Hospital equipment series » Electrocardiograph series » Twelve Channel Electrocardiograph
Share to:

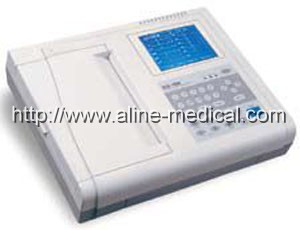

Twelve Channel Electrocardiograph

Quantity:
  • MK21

Additional Description

Features: Digital isolation technology and signal processing ensured the singal reliapility Histogram and trend chart for R-R interval analysis Detail analysis report and representative beats are beneficial to diagnose Languages options:English,Russian and Chinese The LCD brightness and contrastare adjustable Paper shortage alarming and economy mode save printing cost Twleve work modes satisfy the requirements of users More patient information available:he ight,weight,medication history,illness history,etc. Internal memory supporting the maximum data capacity of 2GB Lead:Standard 12 leads,simultanous acquisition Input circuit:Floating;protection against defibrillator effect Input impedance:≥50MΩ Patient leakage current:<10μA Calibration voltage:1mV±3% Frequency responce:0.05-150Hz Time constant:>3.2s Filter:AC:50Hz(-20dB),EMG:35-45Hz(-3dB),DFT:≤0.45Hz CMRR:>100dB Sensitivity:2.5,5,10,20mm/mV Noise level:≤15μVp-p Baseline control:auto-adjustable Power requirements:AC:100- 240V,50/60Hz,55VA,DC:14.8V rechargeable Li-ion battery Safety level:IEC class I,type CF Display:320x240 pixel LCD Operation mode:Auto,manual and rhythm Rhythm lead:selectable Analysis function:ECG parameters auto-measure,autoanalysis Printer:high resolution thermal array printer Paper speed:5,10,25,50mm/s Recording paper:roll:210mmx30m fan-fold paper:210mmx140mmx20m Dimensior:400x325x84.5mm Net weight:5kg
