Twelve Channel Electrocardiograph
You are here: Home » Products » Hospital equipment series » Electrocardiograph series » Twelve Channel Electrocardiograph
Share to:

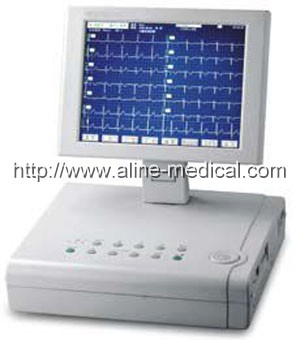

Twelve Channel Electrocardiograph

Quantity:
  • MK22

Additional Description

Features: Digital isolation technology and signal processing ensured the signal reliability Histogram and trend chart for R-R interval analysis Detail analysis report and representative beats are beneficial to diagnose Real-time waveform display,freezing,result observation USB and LAN port for real-time data transmit to PC Huge 12.1 inches color LCD on a swivel arm Unique shuttle design,easier and faster to operate Premium designed silica button for comfortable oeration experience More patient information available:height,weight,med ication history,illness history,etc. Optional SD card supporting data capacity massive storage Waveforms display with grid same as print on the record paper ECG data can be reviewed and managed on a windows PC with optional ECG viewer software Specifications Lead:Standard 12 leads,simultanous acquisition Input circuit:Floating circuit input Input impedance:>50MΩ Patient leakage current:<10μA Input circuit current:≤0.1μA Calibration voltage:1mV±3% Frequency responce:0.05-150Hz Time constant:≥3.2s CMRR:>60dB,>100dB(with AC interference filter) Filter:AC,EMG,DFT Sensitivity:2.5,5,10,20mm/mV Noise level:<15μVp-p Power requirements: AC:100-240V,50/60Hz,50VA,DC:14.8V rechargeable Liion battery Safety level:IEC class I,type CF Display:800x600 pixel color LCD Operation mode:Automatic or manual Analysis function:ECG parameters auto-measure,autoanalysis Printer:high resolution thermal array printer Paper speed:5,10,25,50mm/s Recording paper:fan-fold paper(A4 size): 210mmx140mmx20m Dimension:360x325x380mm N.W:8.6kgs
