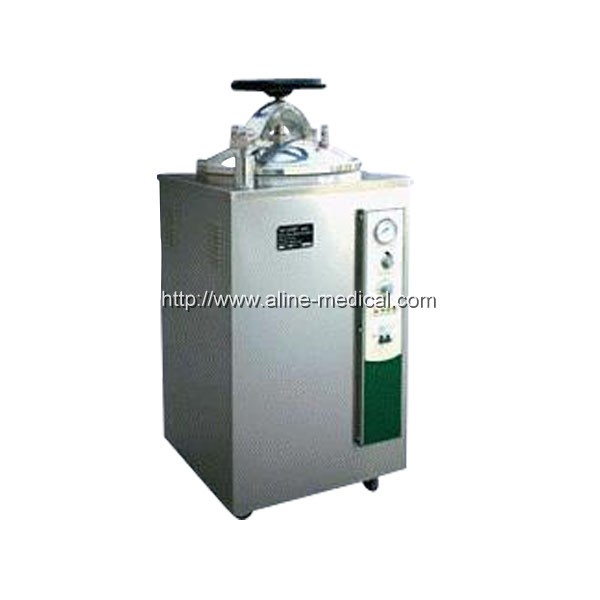

Vertical pressure steam sterilizer

Quantity:
Vertical pressure steam sterilizer
  • MO5

Additional Description

Fully stainless steel structure Hand wheel type of quick-open door structure Pressure safety lock Indicator light indicates working state Over temperature & over pressure auto-protection Double scale indication pressure gauge Self inflating type seal Safe protection of water lacing Automatically shut off with beep reminding after sterilization Easy to operate,safe and reliable With two stainless steel sterilizing baskets Technical Data 35L-I 50L-I 75L-I 100L-I Chamber volume 35L Φ318*450mm 50LΦ340*550mm 75LΦ400*600mm 100LΦ440*650mm Working pressure 0.22Mpa 0.22Mpa 0.22Mpa 0.14Mpa Working temperature 134℃ 134℃ 134℃ 126℃ Max.working pressure 0.23Mpa 0.23Mpa 0.23Mpa 0.165Mpa Heat average ≤±1℃ Timer 0~60min Adjustment of temperature 105~134℃ 105~126℃ Power 2.5Kw/AC220V.50Hz 3Kw/AC220V.50Hz 4.5Kw/AC220V.50Hz Overall dimension 450*450*1010 510*470*1130 560*560*1120 540*560*1250 Transport dimension 570*550*1150 590*590*1280 650*630*1280 680*630*1370 G.W/N.W 72Kg/56Kg 88Kg/68Kg 100Kg/80Kg 110Kg/85Kg
