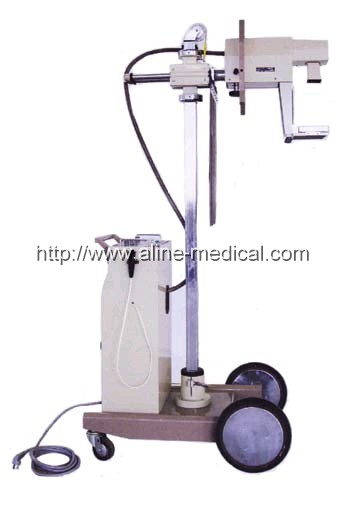

General: 1.It is used to diagnose early mamma pathological changes. 2.Using the Mo. target X-ray tube can show the pathological changes details. 3.A nipple areola cuticles fat galactophore canals glandular tissue connective tissue and blood vessels can be seen in the picture. 4.It has high correctness for distinguishing benign tumor and malignant tumor. 5.It can be moved to ward to photograph beside bed. 6.The unit can also be used to find foreign matters in human body and to do nondestructive inspection of right metal and nonmetal materials. Main Technical Parameter: X-ray generator:Stationary anode,single focus and bridge rectification Max rated capacity:Current:30mA,Voltage:34kVp,Time:2s Power supply:Voltage:180-240V,Frequency:50Hz,Power:not lower than 1.3kVA Range of the timer:0.4-2s Film size:127mmx178mm The movement of camera head mounting:Vertical:630mm;rotation: ±180°,Adapt to different part of human The camera head mounting horizontal range:160mm Rotating angle of the module of the camera head mounting and the pole:180° Specification of X-ray tube/focal spot value:Model XD7-1.05/35 Stationary anode,focus 1mm Transport dimension(LxWxH)mm:1010x760x2040 Weight(kg):Net:121/Gross:195
